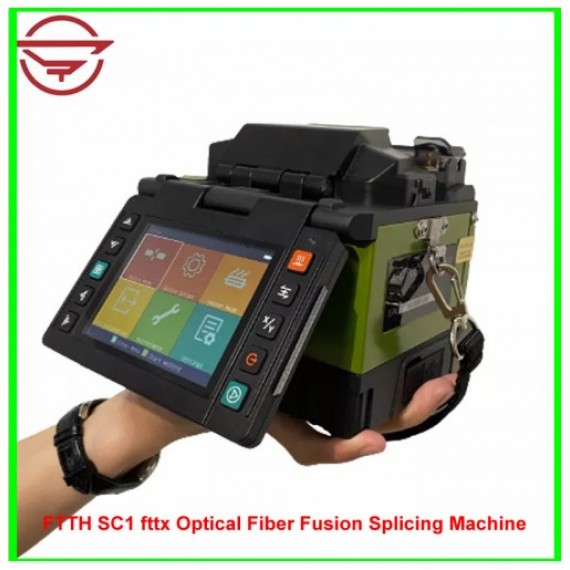

FTTH SC1 fttx Optical Fiber Fusion Splicing Machine

FTTH SC1 fttx Optical Fiber Fusion Splicing Machine-08062306557

FTTH SC1 fttx Optical Fiber Fusion Splicing Machine is a fast fiber optic splicing machine,MiNI one, Core to core,Muti-function, suitable for bare fibers, drop cables, pigtails, etc.

FTTH SC1 fttx Optical Fiber Fusion Splicing Machine Product Parameters:

Model: SC1

Splice Method: Active Clad-Alignment

Applicable Fibers: SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber/Cable: 0.25~3.0 mm / indoor flat cable

Fiber Holder Replaceable

Fiber Diameter Cladding: 80-150μm,Coating: 100~1000μm

Fiber Cleave Length: 8~16 mm

Splice mode: Max 128 modes

Typical Splice Loss: SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB ★

Return Loss: >>60dB

Splicing Time:: SM Quick mode : 8 sec / SM Average: 10 Sec

Estimated Splice Loss: Available

Heating Time:: Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable★

Protection Sleeve Length:: 20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs: Max 32 modes

Battery :3400mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge ★

Electrode Life: 5000 arcs (replaceable) ★

Auto-start: Splice / Heating

Automatic Fiber

Identification /Automatic ARC

Identification : Automatic arc calibration by air pressure and temperature

Results Storage The last 10,000 splice records and 100 result images

Tension Test 1.96~2.25N

Operating Condition: Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s

Storage Condition: 0~95% relative humidity, -20~60°C

Display 3.5" color high resolution (800 x 480) display

Fiber Magnification X, Y, XY, X/Y : 320X Magnification

Power Supply: AC Input 100-240V, DC Input 9-14V

Terminal: USB2.0

Weight: 1.06kg without battery / 1.35kg with battery

Size: 130H x 126D x 113W mm
