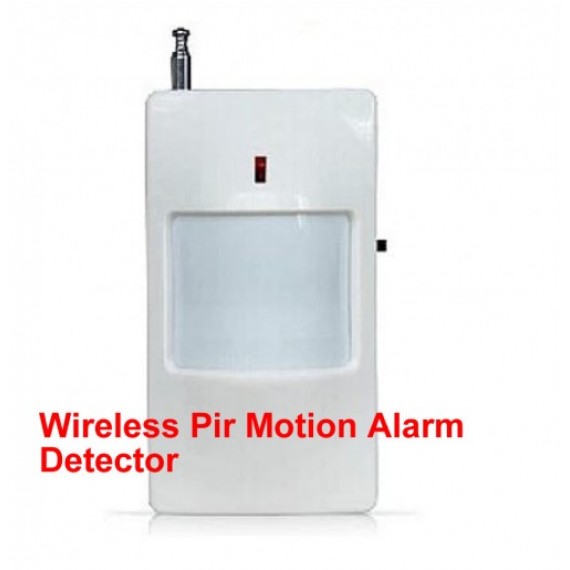

WIRELESS PIR MOTION ALARM DETECTOR

Wireless Pir Motion Alarm Detector For Smart Security Home Alarm System

Wireless PIR Motion Alarm Detector For Smart Security Home Alarm System comes with batteries (DC9V batteries)

Before buying, do check with your alarm panel system whether the specification of our wireless PIR can work with your alarm panel or not to avoid any mistakes.

INSTALLATION

1. Installation at the out door, place with pets, air-condition

nearby, direct sunshine, heat source and under the

rotating objects should be avoided.

2. Surface of installation should be firm with no vibration.

3. Installing the detector in the place where intruder pass

easily.

4. Fixing bracket on the wall by screw.

5. Hang the detector, it will work normally after turning on

the power switch.

Auto temperature compensation

No wiring, install very conveniently

Low battery indication

SMT design adopted

Operating voltage: 9V (powered by battery)

Battery lifespan: half to one years

Static current: 25uA

Alarm current: 15mA

Detecting distance: 12m

Detecting angle: 110°

IC code: 1527

Timing resistor: 330k

Radio frequency: 433MHz

Radio distance: 100M (in open area)

Low battery indicator: yellow LED

Alarm indicator: red LED

Operating temperature: -10 to +50

Environment humidity: 95% RH (no congelation)

Anti RF interference: 10MHz 1GHz 20V/m

Installation mode: wall mounted or hanged in corner

Installation height: 1.7 to 2.5m (2.2m is Proposed)

Outline Size: 59L*45W*107H mm

What's in the box:

Wireless PIR detector with 9V batterys

Screws

manual
